Entity types and property sets

Characters, items, and objectives need different data. A character might have a name and portrait, while an item needs a stack size. Narratyr defines these fields through property sets and entity types.

• A Property set defines a reusable group of fields.
• An Entity type is a template built from property sets.
• An Entity contains values for one instance of an entity type.

Layer	Purpose	Example
Property set	Reusable group of fields	CharacterProperties with FullName, Gender, Role, and Bio
Entity type	Template that includes property sets	Character with CharacterProperties and RelatedEntities
Entity	One instance with field values	Mira Thorne with FullName Mira Thorne and a character role

Use the Property Sets, Types, and Characters & Items views to edit these layers.

Reuse fields with property sets

A property set lets several types share one field definition. Player, NPC, and Merchant types can all include CharacterProperties. Adding a field to that property set adds it to each of those types.

When you edit a shared property set from a type, Narratyr lists the other affected types. Select Make unique to create and attach a copy for the current type. Narratyr then removes the shared set from that type.

A property set can also belong to one type. A KillObjective type might use a TargetId field that no other type needs.

Property sets

A property set has a name, optional description, folder path, and list of fields. The Property Sets view displays folder paths as a tree.

The name must use letters, numbers, or underscore characters without spaces. Exporters use the name for a generated class or structure.

Fields

Each field has a name, type, and default value. Unlike a variable, it stores a separate value for each entity.

Fields support text, numbers, true or false values, option sets, entity references, lists, and sets. Fields can also store an asset reference for an image, sound, or another project file.

Field settings control editing and export behavior:

• Required: project checks report an empty value as an error.
• Multiline: the editor provides a larger input for a text field.
• Rich Text: the text editor supports rich-text content.
• Translatable: export includes the text in player-facing localization data.

An entity reference field can limit choices to one entity type. A Merchant field that refers to a shop can list only location entities. Lists and sets of entity references can store several targets or related characters.

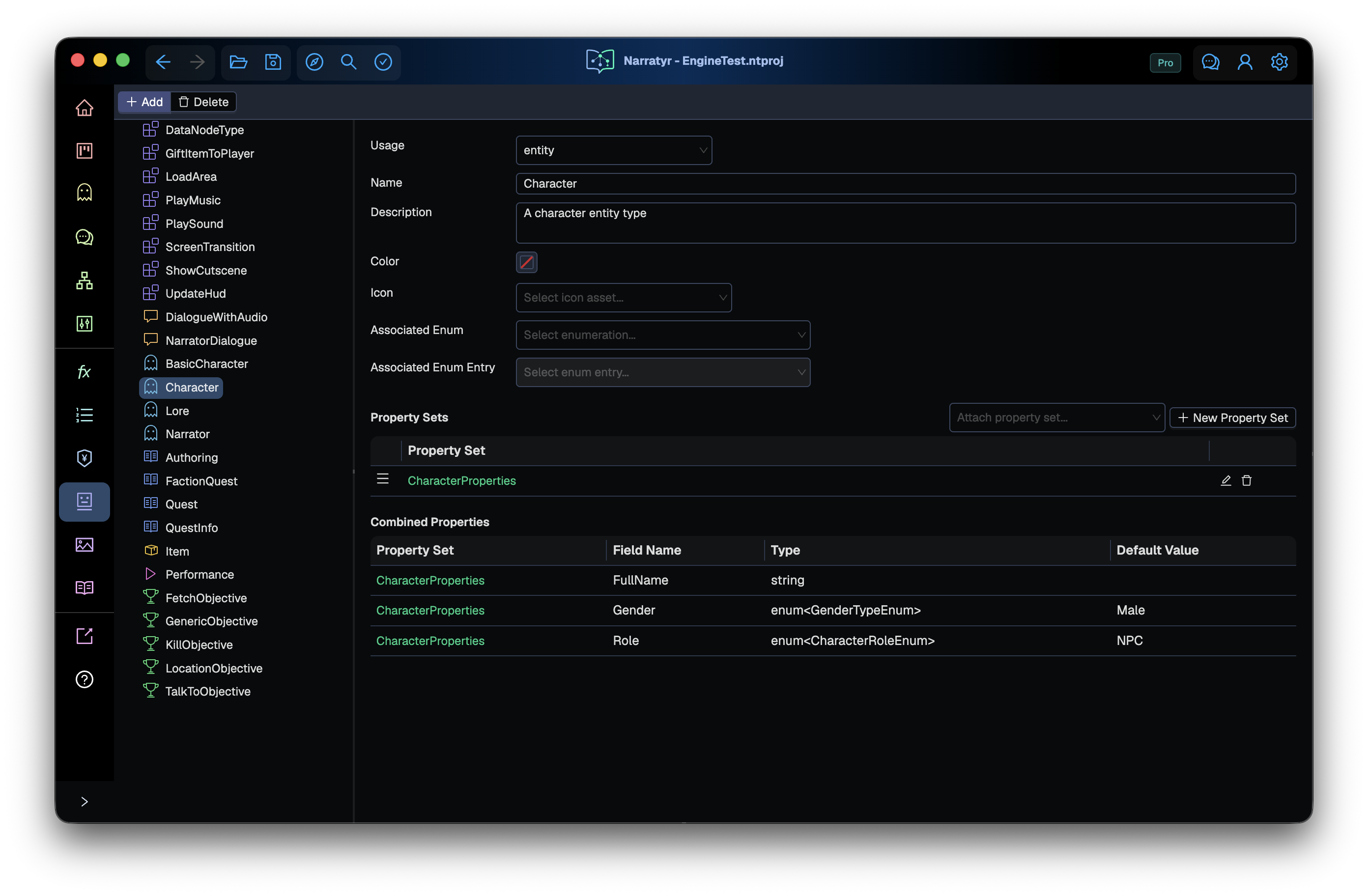

Entity types

An entity type contains an ordered list of property sets. Its fields combine the fields from those sets. Drag property sets to change their order in the entity editor.

Setting	Purpose
Name	Identifier used in the editor and generated class name
Description	Editor guidance shown with the type
Usage	Category of data that the type describes
Color and Icon	Appearance of instances in the editor
Associated Option Set/Entry	Maps the type to an option set entry

The Types view groups types by usage and sorts them by name. Types don't use folders.

Type usage

The Usage setting controls where Narratyr offers a type.

Usage	Purpose
entity	Character, location, lore entry, or another entity created in Characters & Items
item	Entity that represents an inventory item
dialogue_node	Additional fields for a dialogue node variant
quest_node	Additional data on a quest graph's Quest Node
quest_objective_data	Fields for one kind of objective
custom_node	Data sent to the game with a custom node event
graph_metadata	Metadata selected for a quest or dialogue graph
performance	Delivery fields shown on dialogue nodes

Only entity and item types appear in entity reference fields. Other types describe graph data and don't identify objects in the game world. The Characters & Items Add menu shows these supporting types as unavailable.

Narratyr creates the Performance type for new projects and prevents its deletion. You can edit its property sets, and dialogue nodes display the resulting performance fields.

Map types to option set entries

Types with quest_objective_data usage can map to an objective type entry. When you select an Objective Type such as Kill, the editor finds the type mapped to that entry and displays its fields. A KillObjective type might provide a target, while FetchObjective might provide an item and count.

To add an objective kind, create an option set entry and an entity type that maps to it. Add the fields required for that objective.

Change a schema

• Rename fields, property sets, and types: values use stable internal IDs, so renaming a definition preserves existing data.
• Add a field: types that include the property set receive the field. New entities use its default value, while existing entities initially show an empty value.
• Remove a property set from a type: the fields stop appearing, but entities retain their values. Adding the property set again restores access to them.
• Delete a field or property set. Narratyr removes stored values from entities and graph nodes that used the definition. Undo can restore them before you save. After saving, use source control to recover them.
• Change an entity type: an existing entity keeps its original type and disk location. Create an entity of the new type and copy the required values.

Documents and the file format explains how stable IDs preserve data through renames.

Exported types

Exporters create a class or structure for each property set. An entity type becomes a class with one member for each attached set. This preserves the same grouping in game code.

A Unity Character type that uses CharacterProperties produces code like this:

[System.Serializable]
public class CharacterProperties
{
    public string FullName;
    public CharacterRoleEnum Role;
    public string Bio;
}

[System.Serializable]
public class CharacterEntity : Narratyr.NarratyrEntity
{
    public CharacterProperties CharacterProperties;
}

Choose type and property set names that work well in code. An individual entity uses a separate External ID, which game code uses to find that entity. See Exporting.

Next

Add a character creates an entity from an existing type. Variables explains global project state, and Documents and the file format describes storage for types and entities.
